Spring DIN Terminal Block

281-901 Din Rail Mount Spring Cage 2 Conductor Through Terminal Blocks

The spring rail-mount terminal blocks syste of the advantages of this type of rail is that the terminal blocks can be snapped onto the rail in only one direction. This insures that the live electrical components of one block cannot come into contact with the adjacent block’s components. This mounting foot would allow the Terminal Block to be mounted on either the TS 35 DIN Rail.A wide variety of terminal blocks, such as feed-thru, fused, disconnect, ground blocks, and more, are still available in this proven product linene of the advantages of this type of rail is that the terminal blocks can be snapped onto the rail in only one direction. This insures that the live electrical components of one block cannot come into contact with the adjacent block’s components.

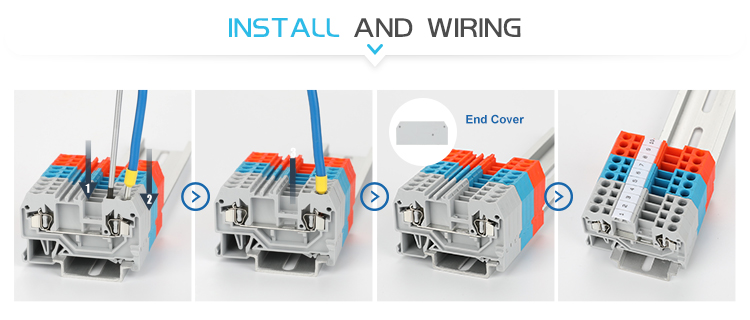

• The spring loaded feed through Terminals allow a fast and safe installation: after the cable lug has been inserted in the block the conductor is fixed by the spring until you can comfortably connect it .
• The insertion space of the The spring rail-mount terminal blocks is designed in such a way that flexible conductors with the rated cross section with ferrule can also be wired up without difficulty.
• The spring rail-mount terminal blocks with proven tension clamp technology are perfect for compact yet manageable cabinet construction.
• The spring rail-mount terminal blocks housings are made of unbreakable polyamide 6.6 of the inflammability class V0 acc.

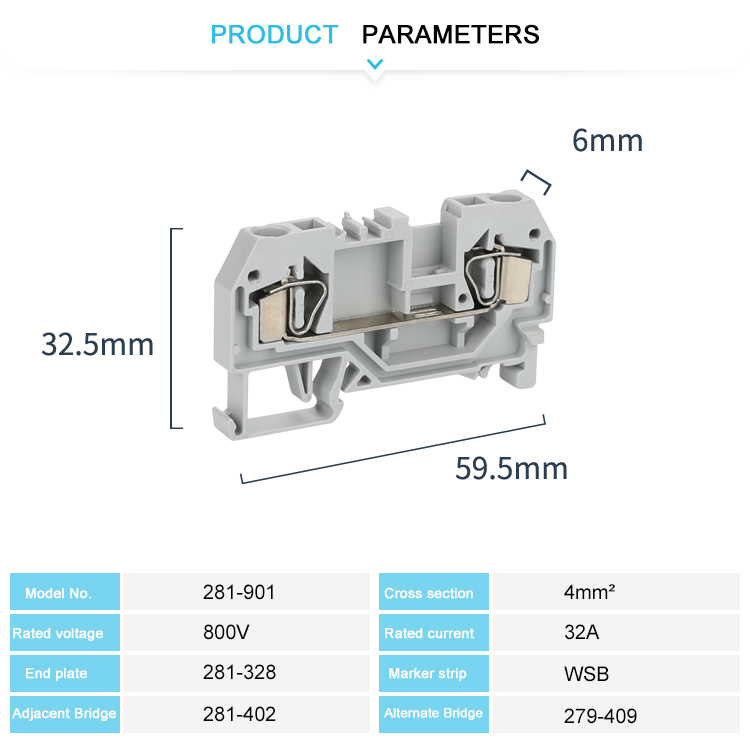

Technical Parameters
